YY Single Phase Running capacitance Asynchronous Motor |
![]() |
![]() |
Summary
YY Single – phase single capacitor running asynchronous motor is drawing the advanced technology and designed by optimal design of the domestic and international , This serial motors have such characteristic :strong running output , reliable service ,and convenient maintenance, is fits into the relevant regulations of The Recommend Standard of international Electro Technical Commission, and can be widely used in drive equipment of lower-power machinery.
Structure characteristic
The YY Series is complete-enclosed structure,and the crust protectiong on grade is ip44,cooling type is IC 141.E grade insulation,50/56m mounting with cooling tyep IC 41,63 or above mounting withe cooling type IC41,and the junction box is on the top of the motor.
There are five option for installation which are:
1 b3 model mounting with feet
2 B5 model mounting with big flange
3 b14 model mounting with small flange
4 B35 model mounting with feet and big flange

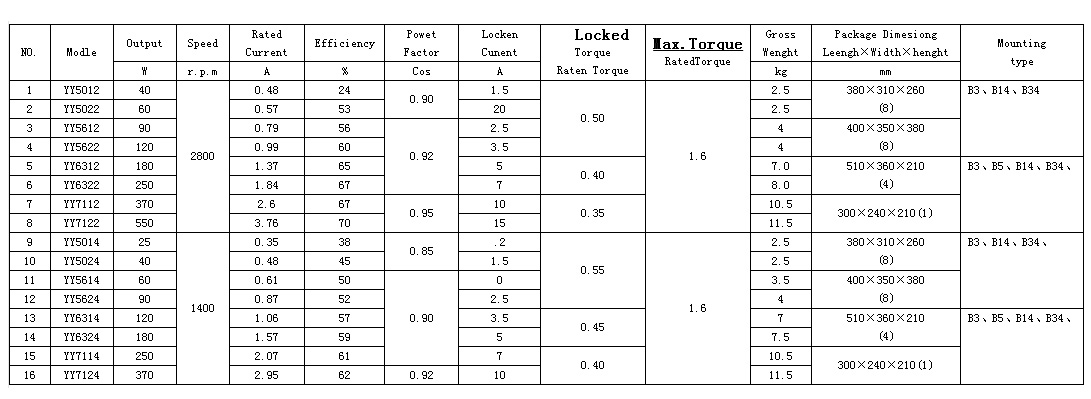

Specifications
![]() |
